Adding an MCP Server

Configuration Steps​

  1. Navigate to the Create Assistant or Edit Assistant page
  2. In the Available tools section, expand the External tools category
  3. Click on the External tools card to expand it
  4. Select Browse Catalog for already predefined MCP servers or Manual Setup for adding your own MCP server

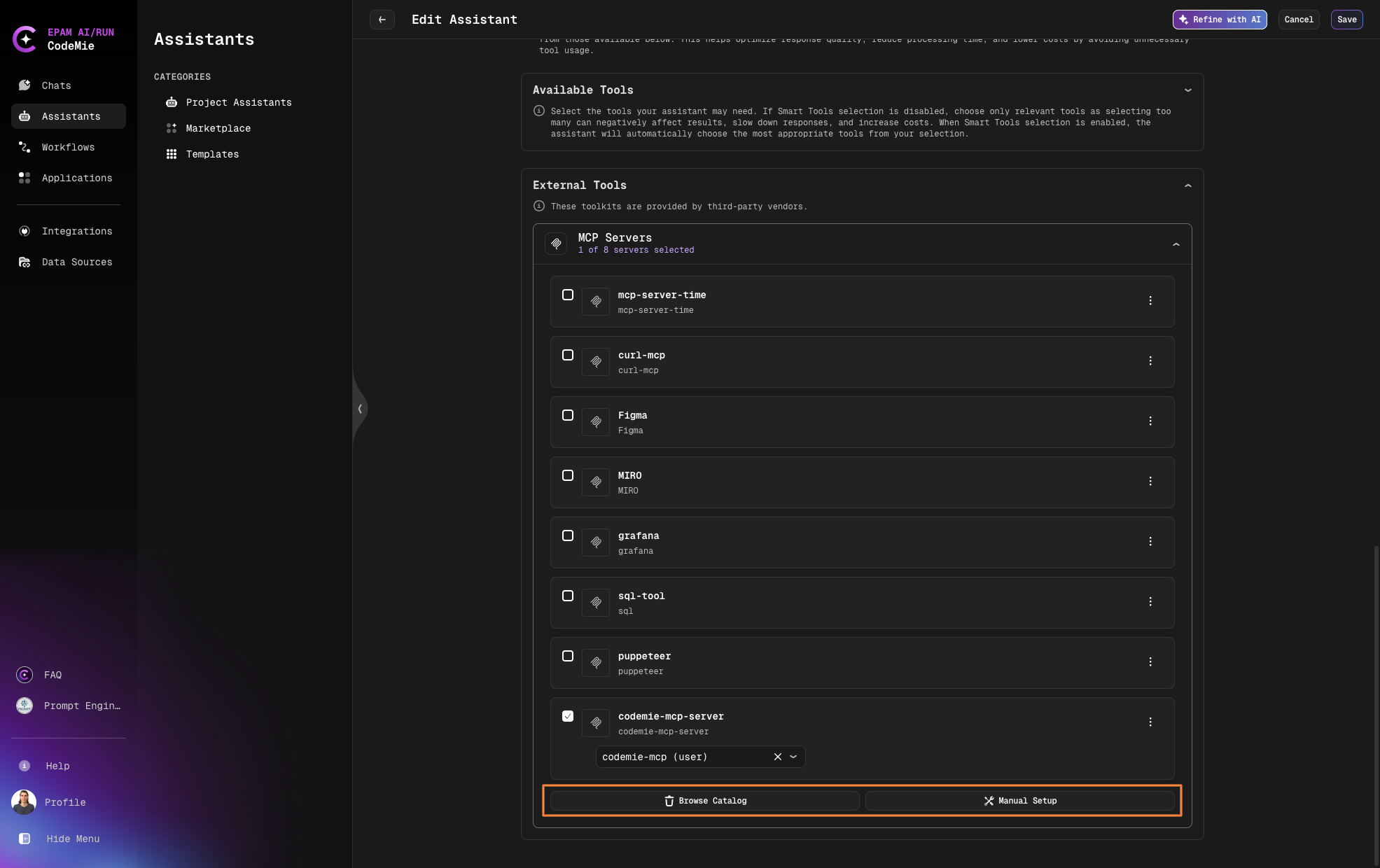

External tools

Add Predefined MCP Servers from Browse Catalog​

  1. Search MCP with Categories filter or by name and click Add
  2. Add required Environment Variables
  3. Add or select environment variables from the dropdown list if needed
  4. And click Save
  5. Click Test Integration and Add to complete the configuration

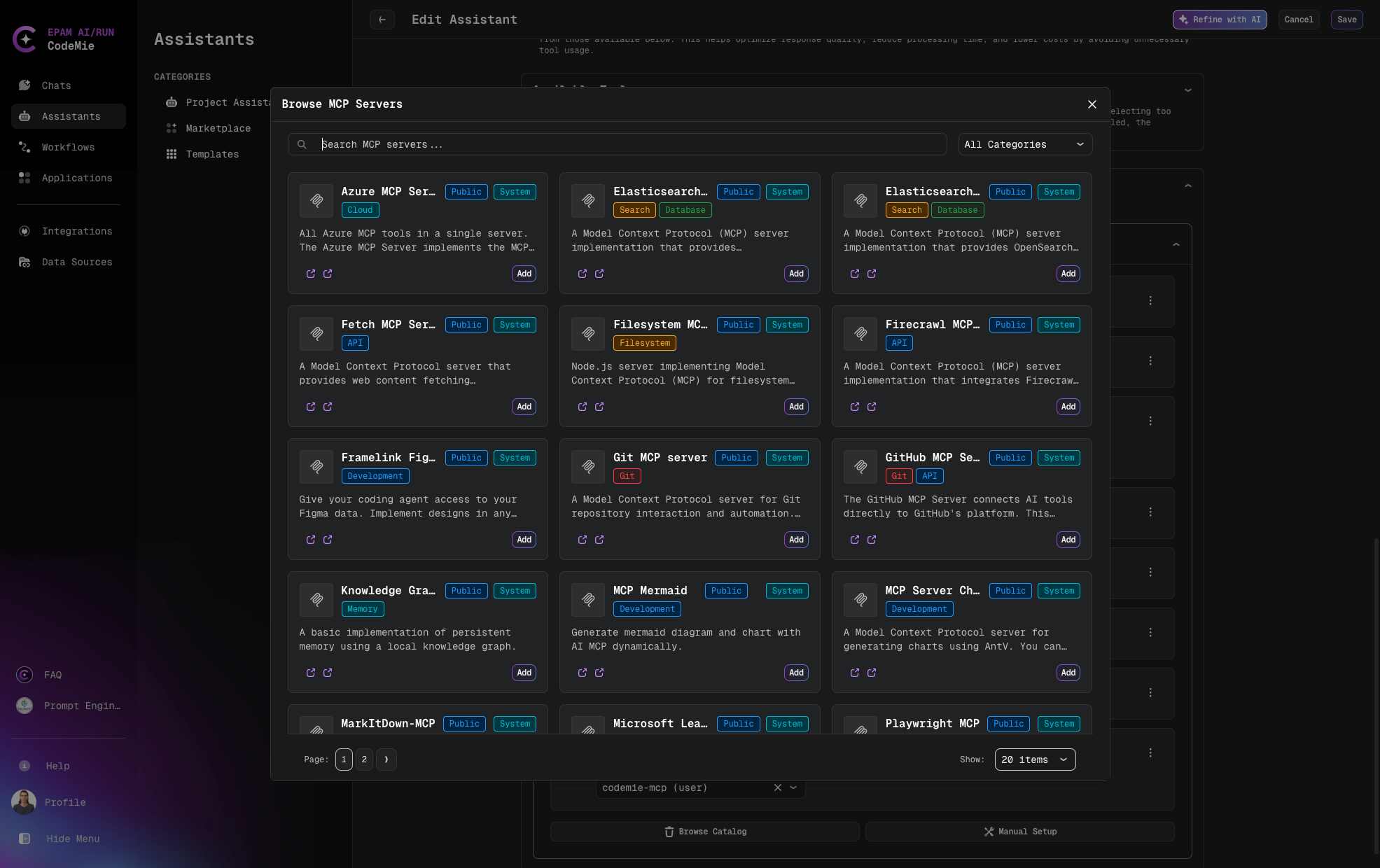

Browse catalog

Add MCP Server with Form Manual Setup​

When configuring an MCP server using the Form method:

  1. Fill in the required fields:
    • Name: A unique identifier for your server (required)
    • Description: Details about the server's purpose (optional)
    • Tools Tokens Size Limit: in need to change value by default
    • Command: The command used to invoke the server (required)
    • Arguments: Any additional parameters needed, space-separated (optional)
  2. Select environment variables from the dropdown if needed
  3. Click Test Integration and Add to complete the configuration

Example:

  • Name: time-mcp-server
  • Description: time-mcp-server
  • Command: uvx
  • Arguments: mcp-server-time --local-timezone=America/New_York

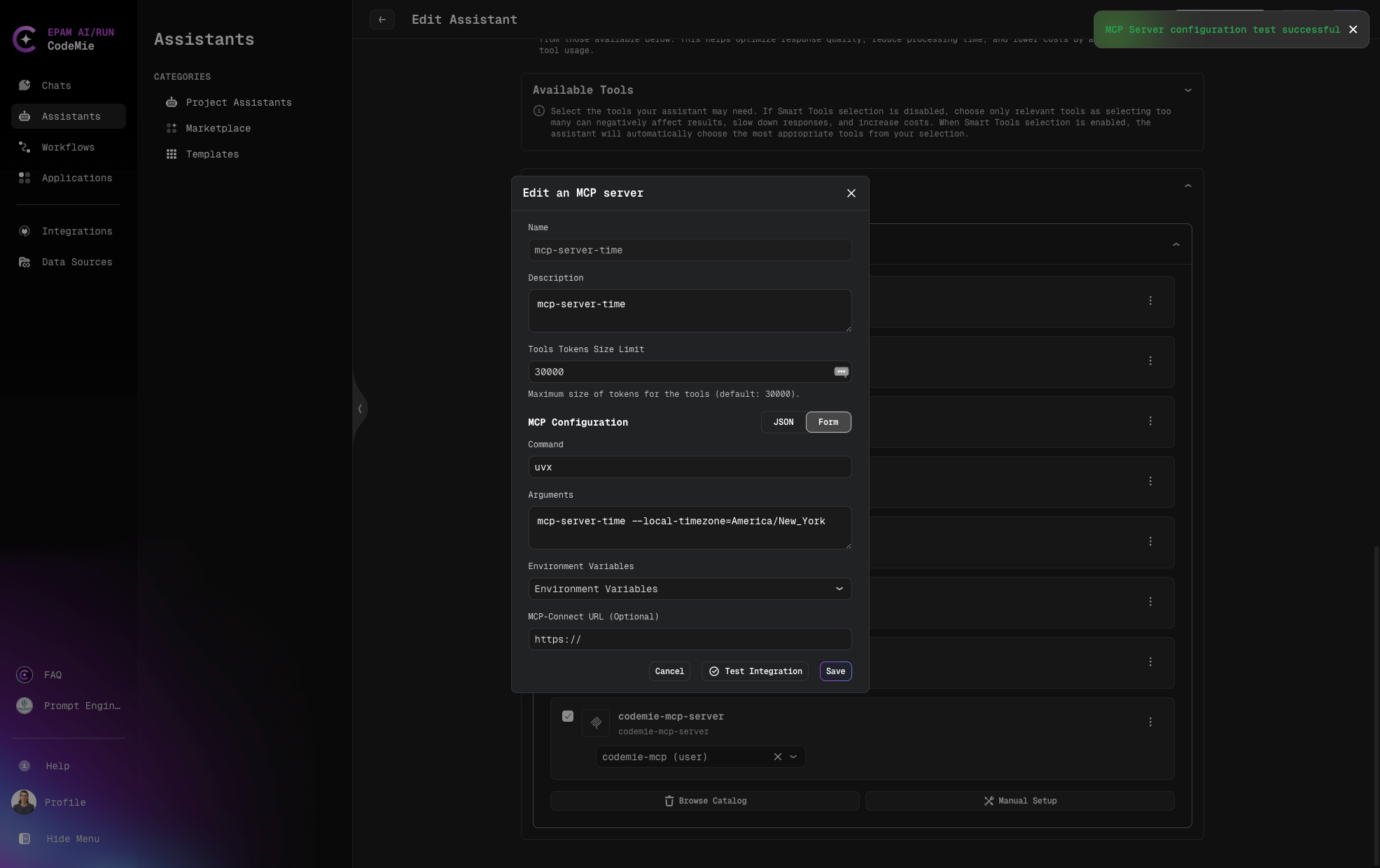

Form setup

Add MCP Server with JSON Method Manual Setup​

For advanced configurations, you can use the JSON method:

  1. Fill in the basic fields (Name, Description, Command, Tools Tokens Size Limit)
  2. Enter valid JSON data in the JSON format field
  3. Select environment variables as needed
  4. Click Add Server to complete the configuration

Example:

{
  "command": "uvx",
  "args": ["mcp-server-time", "--local-timezone=America/New_York"]
}

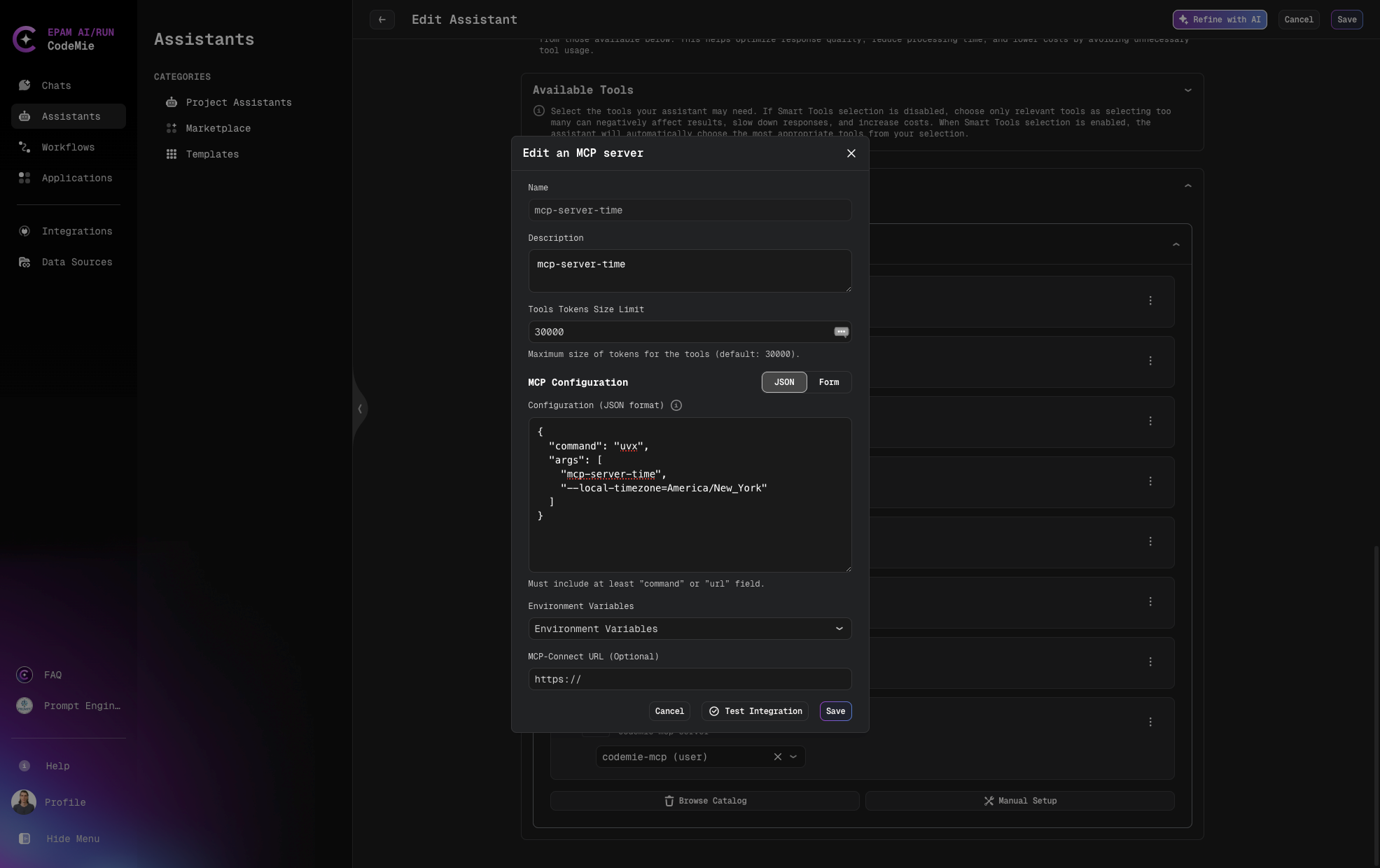

JSON setup

Example of the conversation:

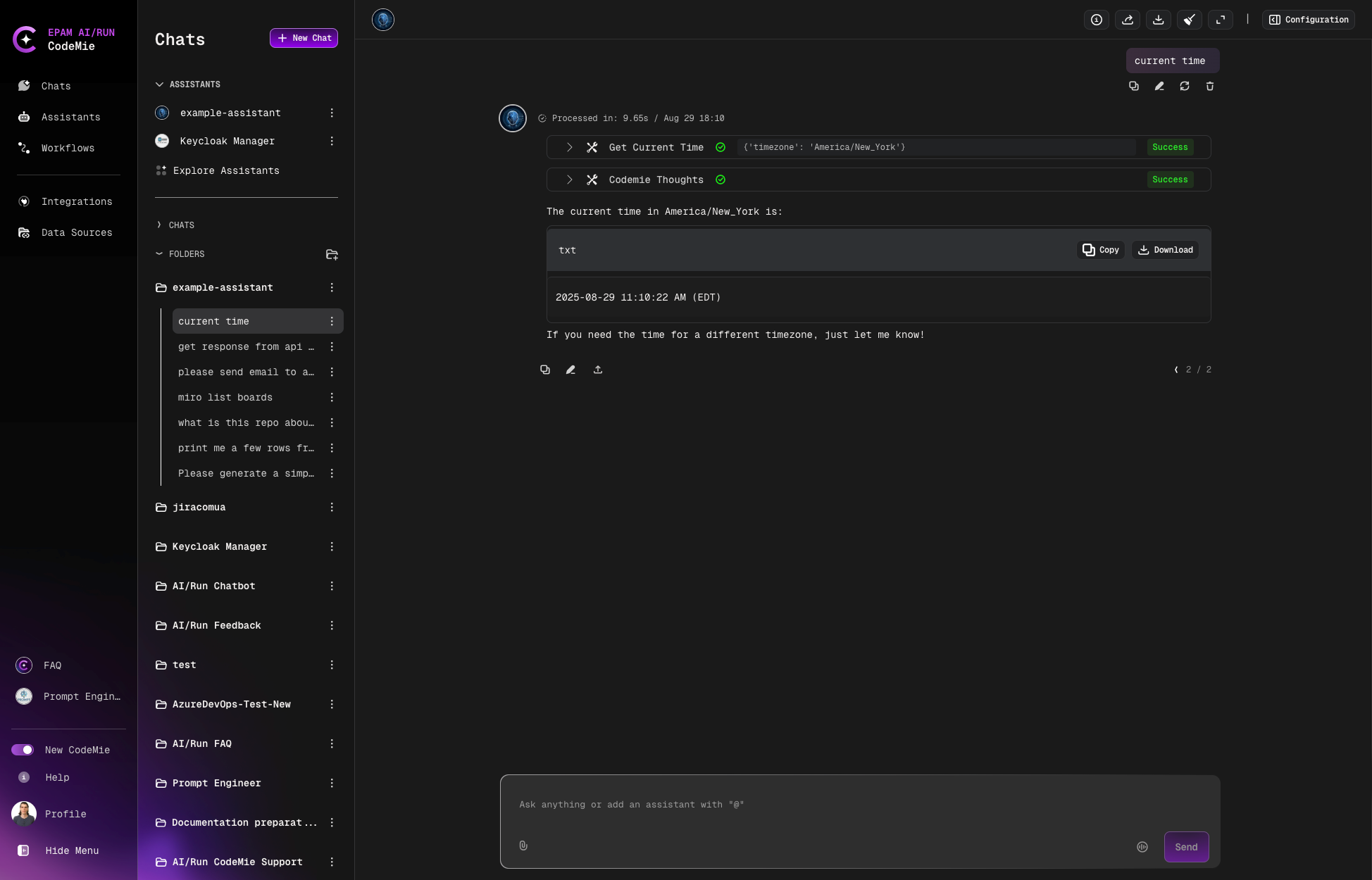

MCP conversation

Managing Environment Variables​

MCP servers often require environment variables for proper operation:

  1. Click Add environment variables on the expanded MCP tool card
  2. Choose between Project Environment Variables or User Environment Variables
  3. Fill in the required fields:
    • Alias: A user-friendly name for the variable
    • Key: The environment variable key name
    • Value: The value to assign (will be securely stored)
  4. Click Add Environment Variables to save the configuration

Testing MCP Server Integration​

To ensure your MCP server is correctly configured and accessible, CodeMie provides a convenient Test integration feature:

Testing from the Edit MCP Server Page​

  1. Navigate to the Edit assistant page
  2. Find and expand the MCP server tool card
  3. Click on the three dots menu, then click Edit
  4. On the Edit an MCP server page, locate the Test integration button next to Cancel and Save
  5. Click the Test integration button
  6. The system will immediately verify the connection and display the result:
    • Success: The MCP server is properly configured and accessible
    • Failure: Troubleshooting information will be provided

Testing from the MCP Server Card​

  1. Navigate to the Edit assistant page
  2. Find and expand the MCP server tool card
  3. Click on the three dots menu
  4. Select the Test integration option
  5. The system will perform the verification and display results immediately

This feature helps you quickly confirm that your MCP server connection is working properly without having to test it through actual assistant conversations.
